Peugeot 306XR timing belt installation. Posted by manual-mecanica
Hello everyone, my question is how to install the timing belt on a 1994 Peugeot 306 XR engine. I removed it, and when I installed it the first time, I had no problems, but I had a problem with the cylinder head and had to remove it again. Now, when I try to install it, the engine won't start. I checked the timing marks according to the manual, setting the locking clips on the crankshaft and camshaft pulleys, but my question is that they don't line up when I check the flywheel at the back. I made sure the timing mark on the flywheel window aligns with the crankshaft position sensor (TDC). Now it won't start. What should I do? I previously installed the belt according to some marks I placed as a reference. Now I'm not sure if the timing marks are correct. Can someone tell me which ones and where the correct timing marks are, and what position the steering rack is in relative to the position sensor? The marks are on the front. Oh, and one more thing: the mark on the crankshaft sprocket points upwards when it's synchronized according to the manual, and on the other end of the same sprocket there's a mark pointing in the opposite direction, downwards. Help! Please! By the way, the engine is a single overhead camshaft
Latest edition: 13 years 6 months before by .

Please connect or create account to join the conversation.

  • Manual-Mecanica
  • Author of the subject
  • Offline
  • Fresh Boarder
  • Fresh Boarder
Further
13 years 6 months before #35527 by manual-mecanica
Manual-mechanics' response on the topic Re: Peugeot 306XR timing belt assembly
What is the engine displacement?

Please connect or create account to join the conversation.

  • Manual-Mecanica
  • Author of the subject
  • Offline
  • Fresh Boarder
  • Fresh Boarder
Further
13 years 6 months before #35558 by manual-mecanica
Manual-mechanics' response on the topic Re: Peugeot 306XR timing belt assembly
It's 1.8cc

Please connect or create account to join the conversation.

  • Manual-Mecanica
  • Author of the subject
  • Offline
  • Fresh Boarder
  • Fresh Boarder
Further
13 years 6 months before #35561 by manual-mecanica
Manual-mechanics' response on the topic Re: Peugeot 306XR timing belt assembly
Here it is... the gas station


ATTACHING FILE:

File name: email.zip
File Size: 272.93 KB


Luck

Please connect or create account to join the conversation.

  • Manual-Mecanica
  • Author of the subject
  • Offline
  • Fresh Boarder
  • Fresh Boarder
Further
13 years 6 months before #35570 by manual-mecanica
Manual-mechanics' response on the topic Re: Peugeot 306XR timing belt assembly

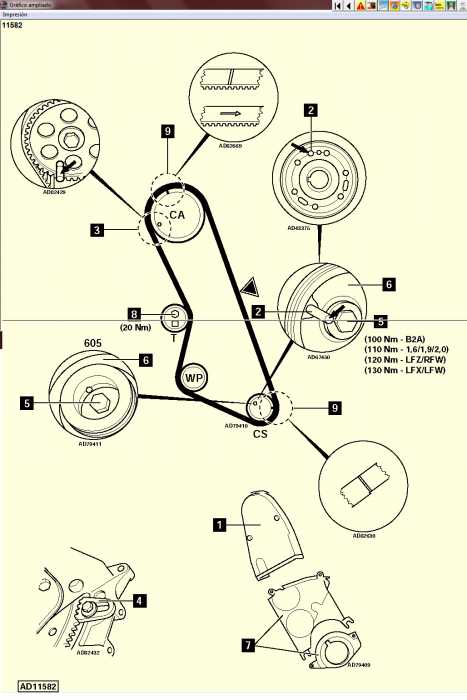

Hi, in the diagram you sent me, from the mark on the camshaft pulley to the mark on the crankshaft sprocket, going clockwise, how many teeth are on the belt: 50, 51, 52, or 53? And in what position should the position window of the first cylinder of the flywheel rack be located before reaching the sensor: at the same height as the sensor or after the sensor? Thanks
